Product Details
＋

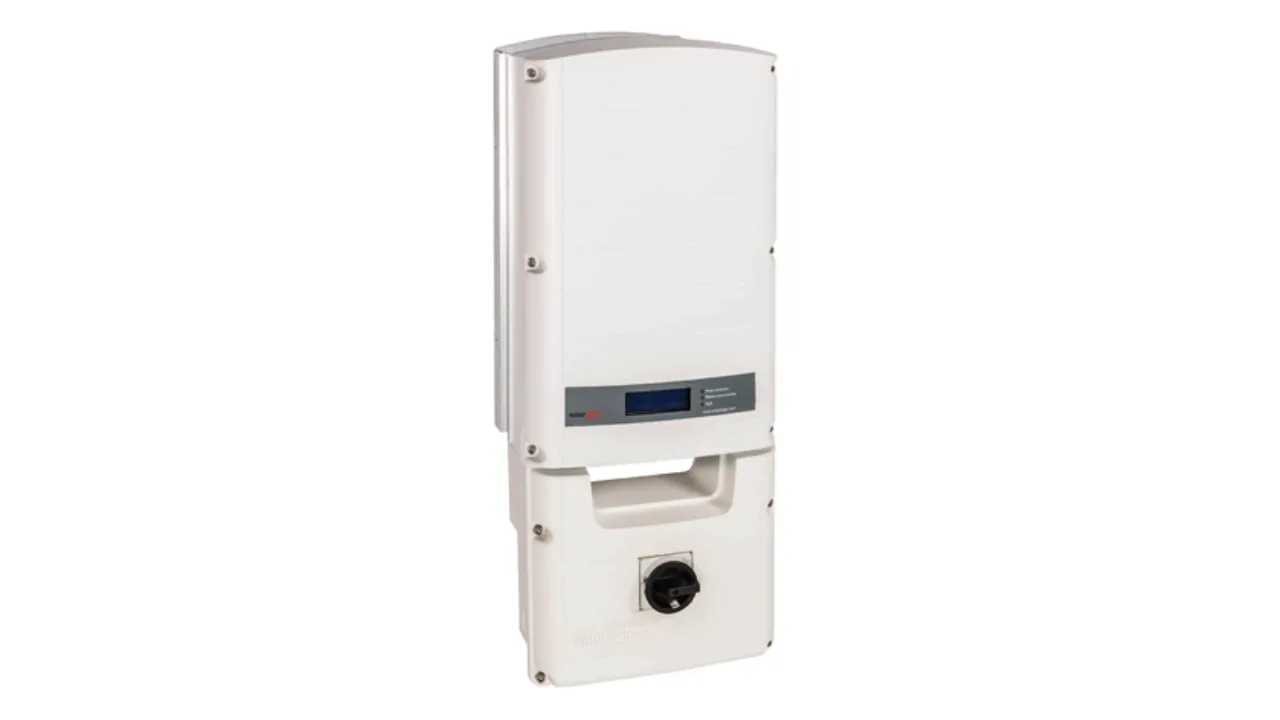

SolarEdge 25kW Three Phase Inverter R4 with DC Safety Unit and fuses NO DISPLAY
#1: SE-25000-R4-APP Inverters - Main Units
*Collections are not permitted due to health & safety regulations*
Solar Edge 25000 3phase inverter with DC safety switch and DC surge protection (type II) and DC fuses ( /-) with Set APP function (no display)
THIS INVERTER HAS NO TRACKERS AND REQUIRES POWER OPTIMIZERS TO FUNCTION.
The SolarEdge inverters combine a sophisticated, digital control technology and a one stage, efficient power conversion architecture to achieve superior solar power harvesting and best-in-class reliability. The fixed-voltage technology ensures the solar inverter is always working at its optimal input voltage, regardless of the number of modules in a string or environmental conditions.
Please note: This inverter does not have a display. It is a new Comms Board version and set up and commissioning need to be done using Solar Edge SetAPP mobile application.
THIS INVERTER HAS NO TRACKERS AND REQUIRES POWER OPTIMIZERS TO FUNCTION.
The SolarEdge inverters combine a sophisticated, digital control technology and a one stage, efficient power conversion architecture to achieve superior solar power harvesting and best-in-class reliability. The fixed-voltage technology ensures the solar inverter is always working at its optimal input voltage, regardless of the number of modules in a string or environmental conditions.
Please note: This inverter does not have a display. It is a new Comms Board version and set up and commissioning need to be done using Solar Edge SetAPP mobile application.
Supplier Part No: SE25K-RW00IBNR4
Weight: 40 kg
Rated Power: 25,000 W
Min PPT Voltage: 750 V
Max PPT Voltage: 1,000 V
DC Startup Voltage: 0 V
DC Shutdown Voltage: 0 V
Max Input Voltage: 1,000 V
Max DC Power: 37,500 W
Max AC Power (5 Minutes): 25,000 W
Surge AC Power (1 Second): 25,000 W
Max DC Current: 36.25 A
Max DC Inputs: 4
Has DC Fuses: 8
Connector: MC4
Included Connectors: 0
Euro Efficiency: 98 %
Transformer: None
MPPT Quantity : 0
Has Integrated DC Switch: Yes
Warranty: 12 years
Weight: 40 kg
Rated Power: 25,000 W
Min PPT Voltage: 750 V
Max PPT Voltage: 1,000 V
DC Startup Voltage: 0 V
DC Shutdown Voltage: 0 V
Max Input Voltage: 1,000 V
Max DC Power: 37,500 W
Max AC Power (5 Minutes): 25,000 W
Surge AC Power (1 Second): 25,000 W
Max DC Current: 36.25 A
Max DC Inputs: 4
Has DC Fuses: 8
Connector: MC4
Included Connectors: 0
Euro Efficiency: 98 %
Transformer: None
MPPT Quantity : 0
Has Integrated DC Switch: Yes
Warranty: 12 years
