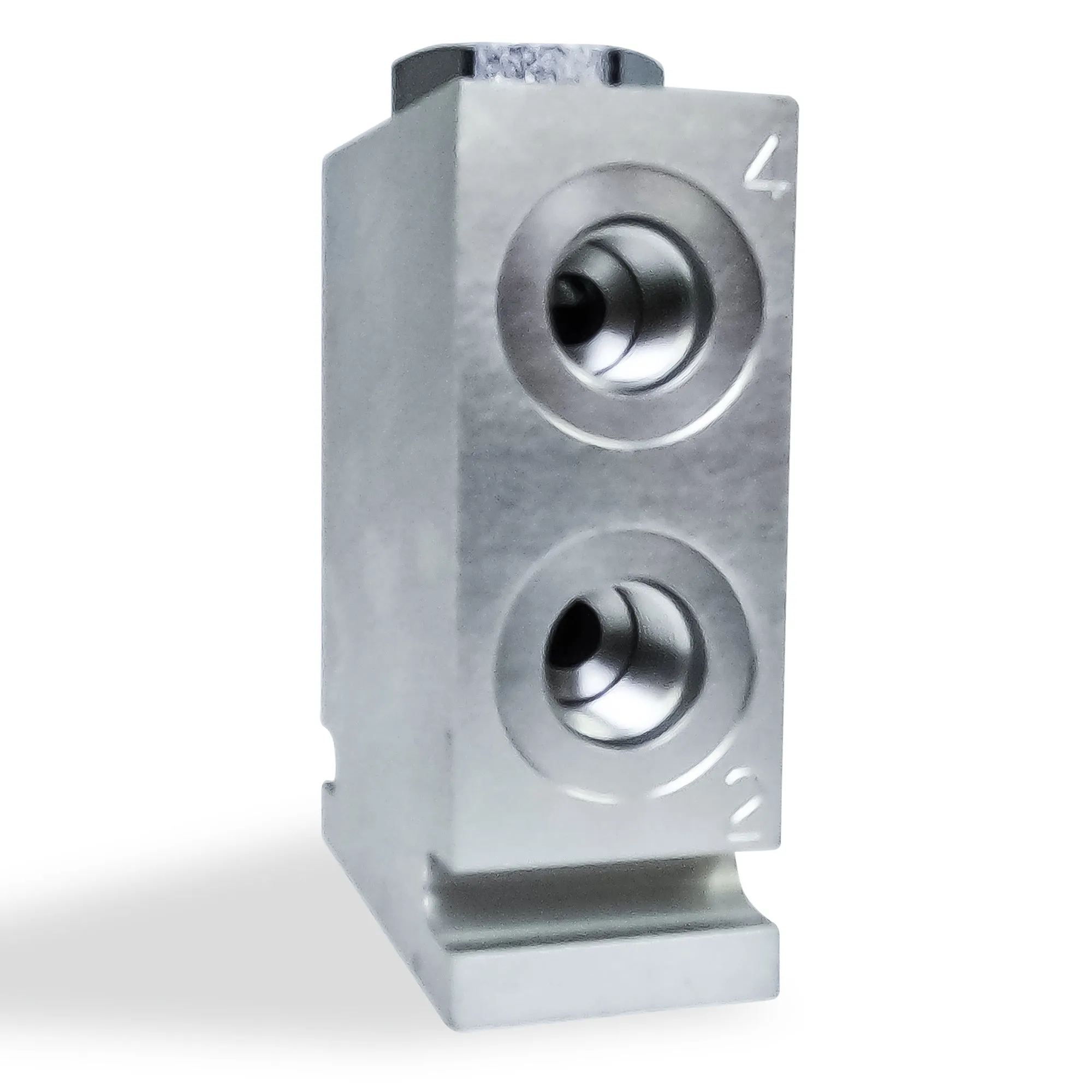

High-Performance, High-Pressure Multifunction Flow Divider/Combiner

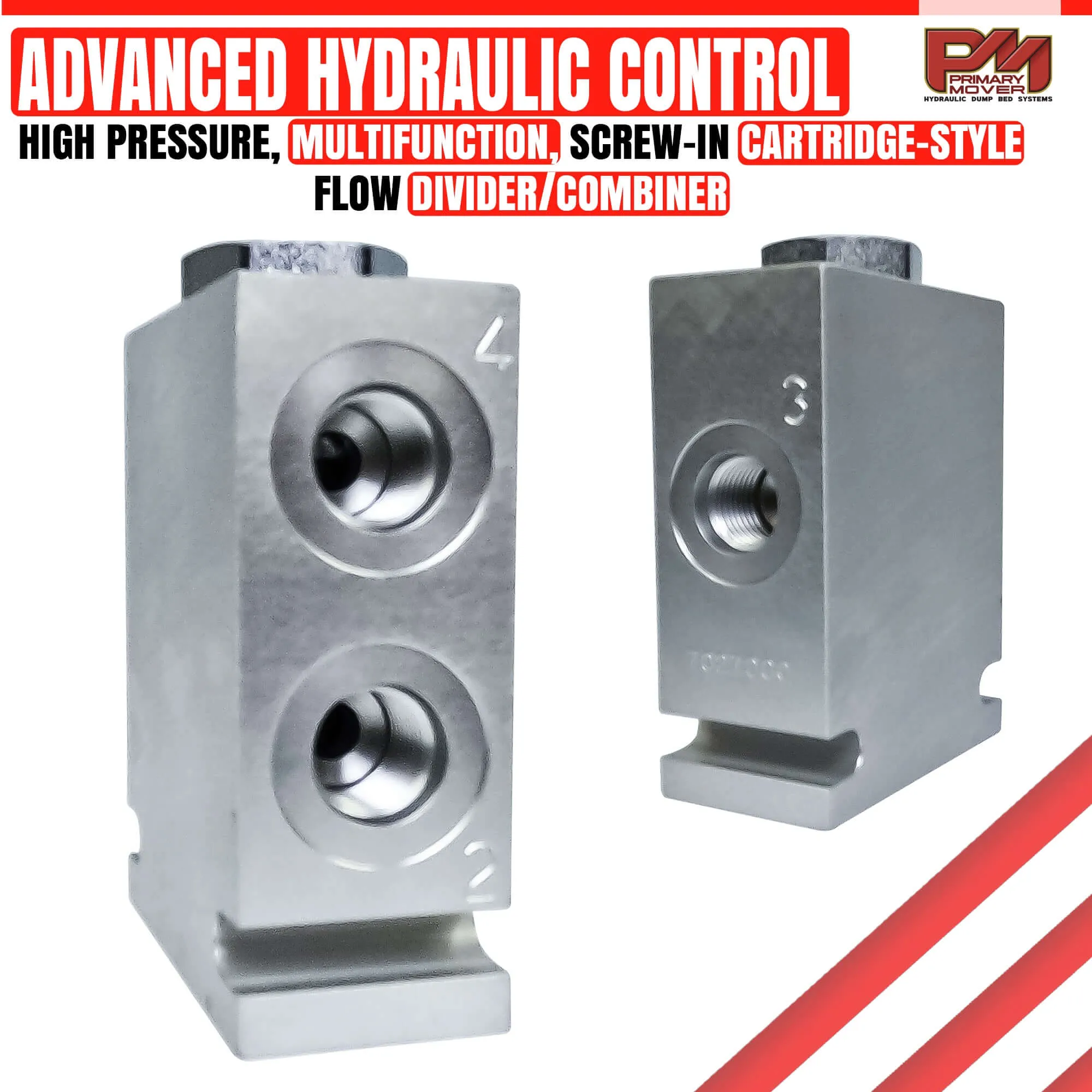

Optimize your hydraulic system with our high-performance, high-pressure, multifunction, screw-in, cartridge-style, spool-type Flow Divider/Combiner. This essential component is designed to ensure synchronization and balance when operating dual-acting hydraulic cylinders, such as those found in dump trailer kits or on trucks equipped with hydraulic power units.
Operation:

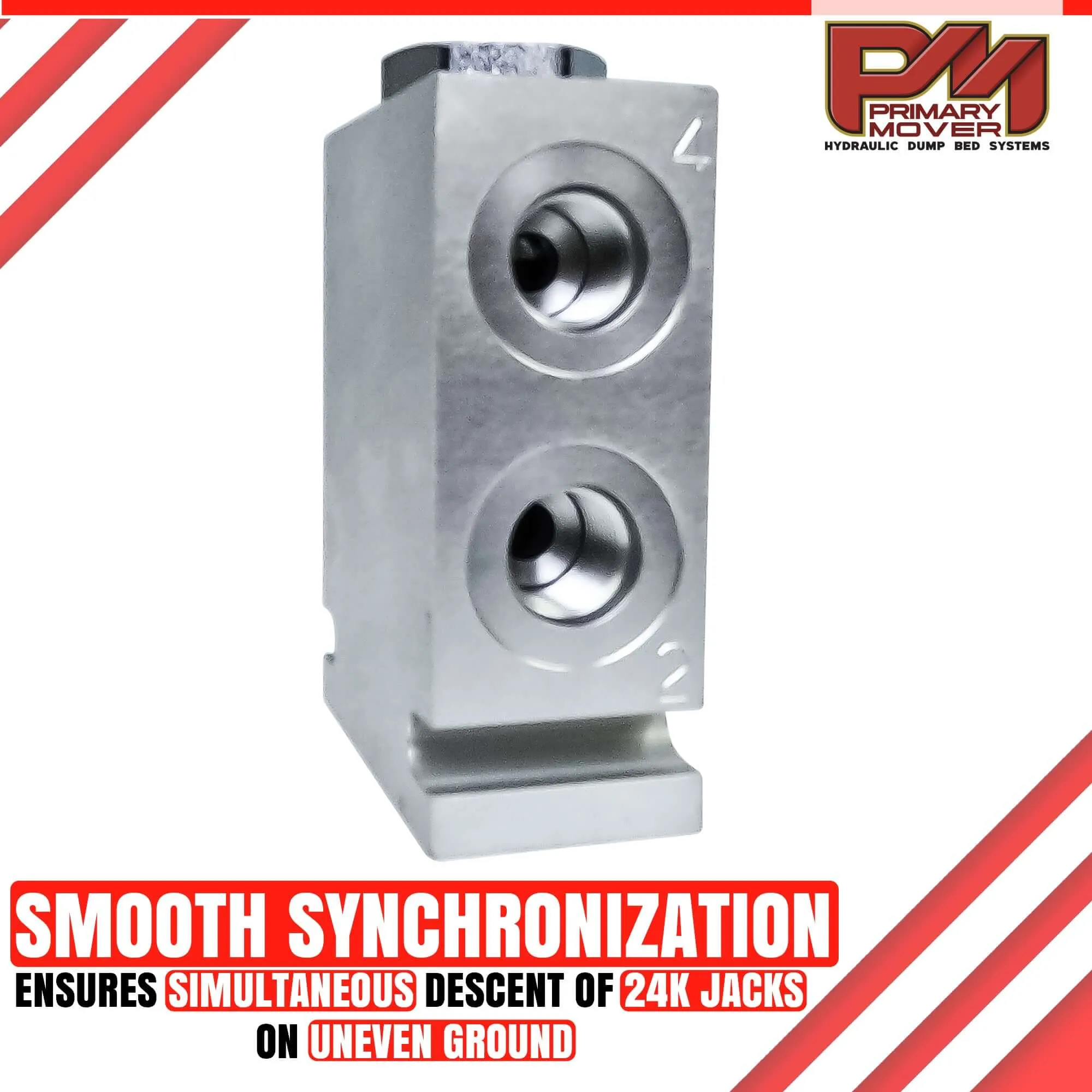

- Dividing Mode: The valve diverts input flow from port 3 to ports 2 and 4, based on the specified ratio, regardless of operating pressure. When the flow direction is reversed, the valve combines flows from ports 2 and 4 back to port 3. It synchronizes flow in both dividing and combining modes, ensuring balanced operation in “bottomed” cylinder conditions and “stalled” motor conditions.
- Leveling Function: When used with dual-acting cylinder jacks on uneven ground, this flow divider monitors the pressure in both cylinders and diverts flow to the lagging jack until they are synchronized. It then balances the pressure to jack the trailer level, ensuring a smooth and even lift.

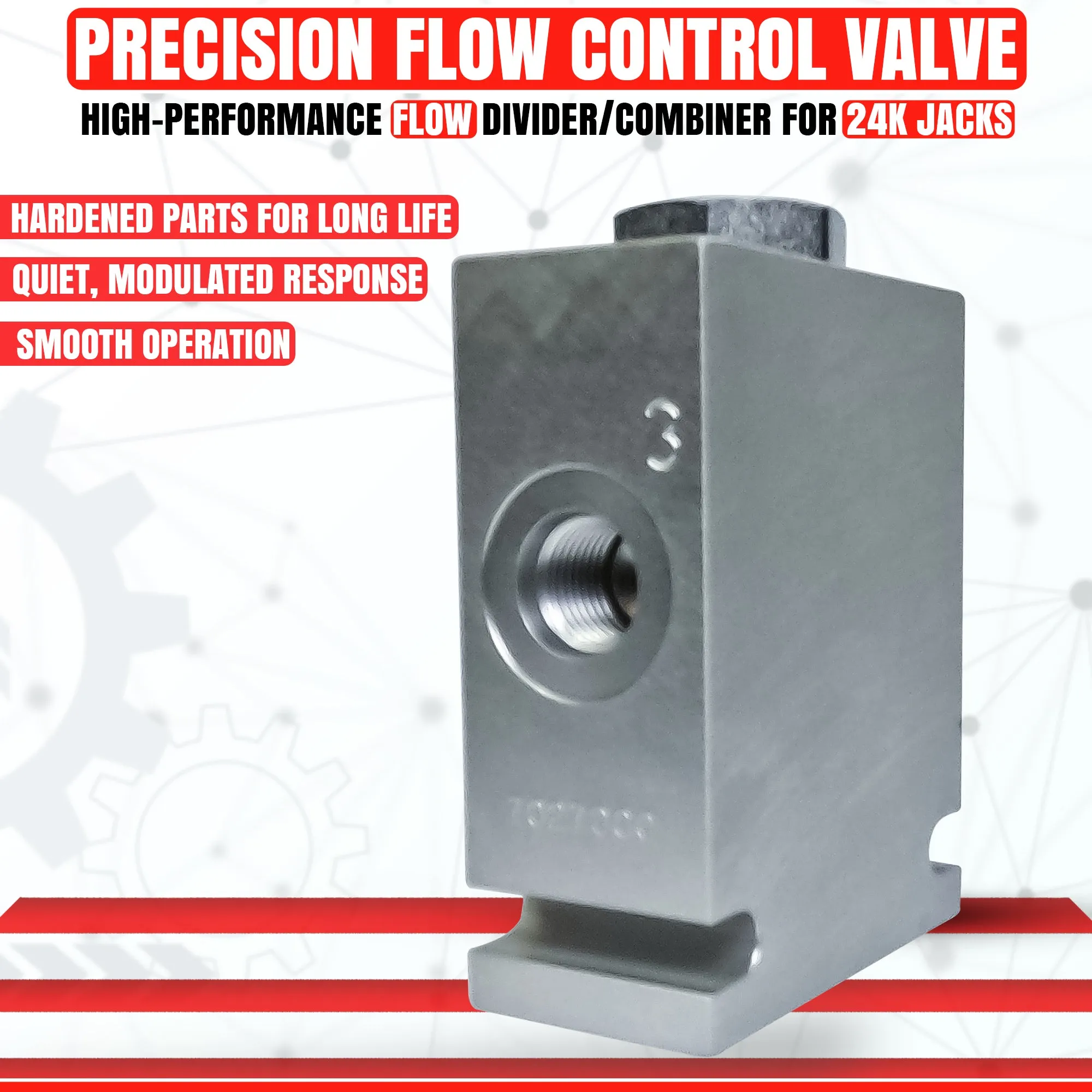

Features:
- Hardened Parts: Built with hardened components for extended service life.
- Quiet Operation: Modulated response for reduced noise during operation.
- Wide Flow Range: Capable of operating across a broad range of flow rates.
- Synchronization: Ensures synchronized movement in both dividing and combining modes.
- Floating Cage Design: Allows for high installation torque, ensuring secure placement.
- Industry-Standard Cavity: Compatible with industry-common cavities for easy integration.

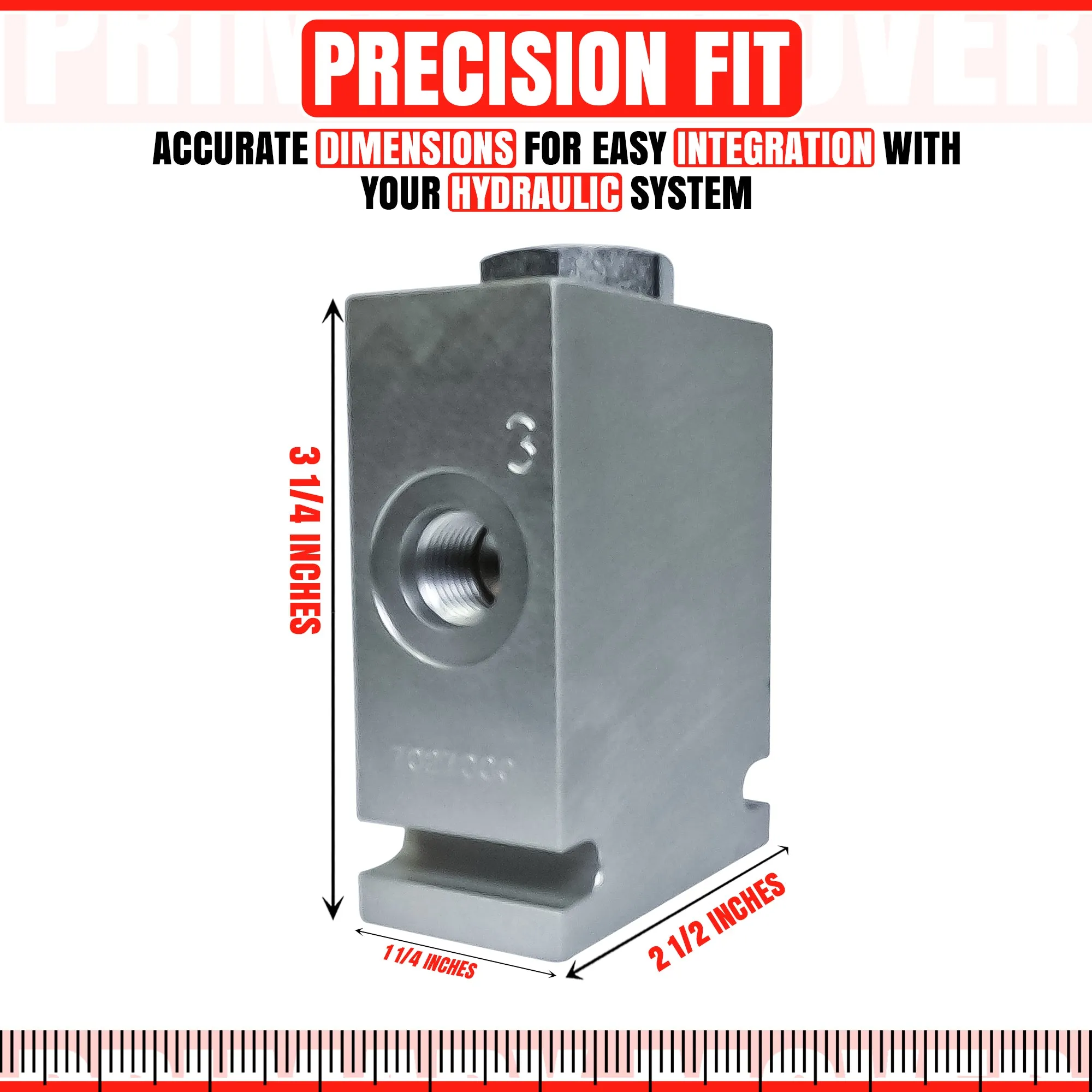

Specifications:

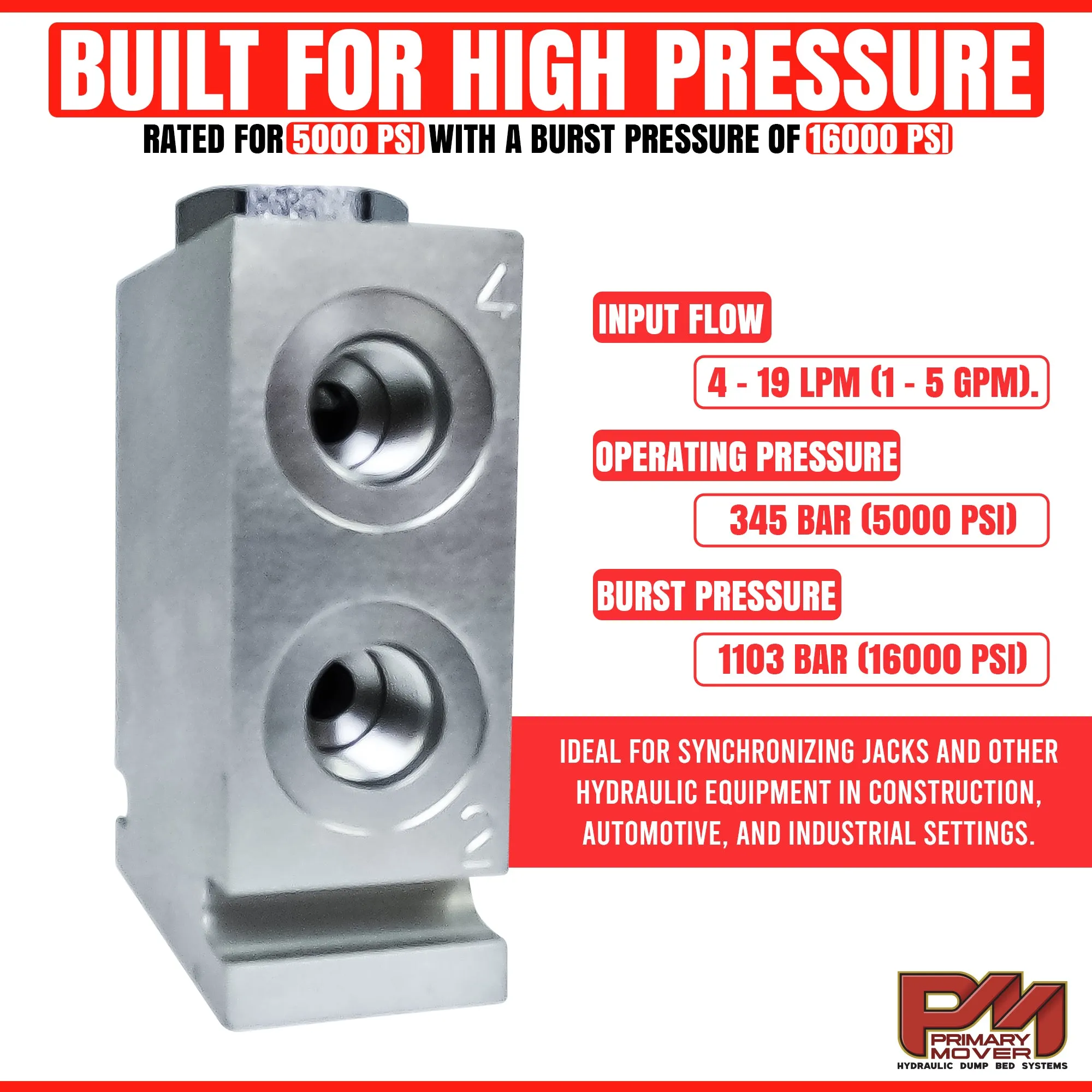

- Operating Pressure: Up to 345 bar (5000 psi)
- Burst Pressure: Up to 1103 bar (16000 psi)
- Flow Range: Input Flow: 4 - 19 lpm (1 - 5 gpm); Ratio: 50:50; Model Code: 22
This flow divider/combiner is an ideal addition to 12vdc hydraulic power units, particularly in applications where precise leveling and synchronization are crucial. Whether you’re dealing with uneven terrain or complex hydraulic setups, this device ensures reliable and consistent performance.
