Product Details
＋

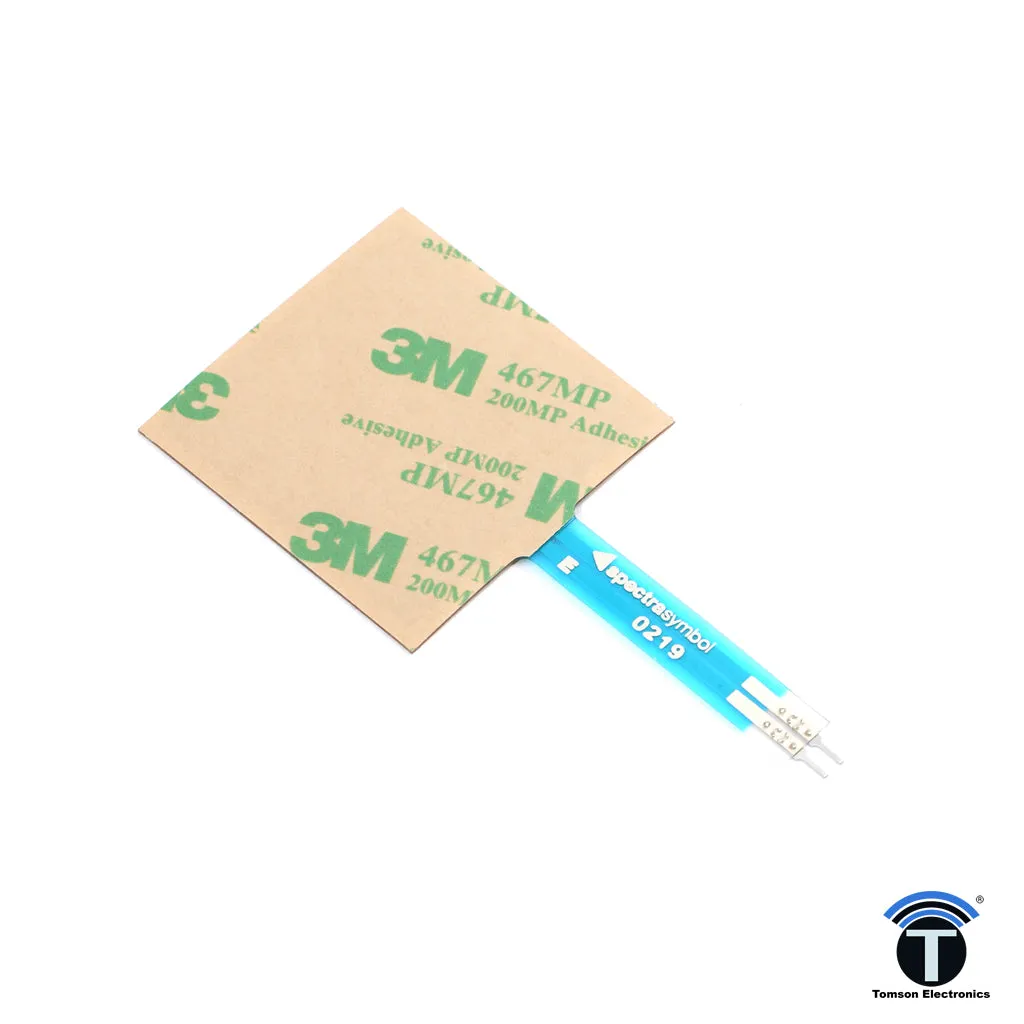

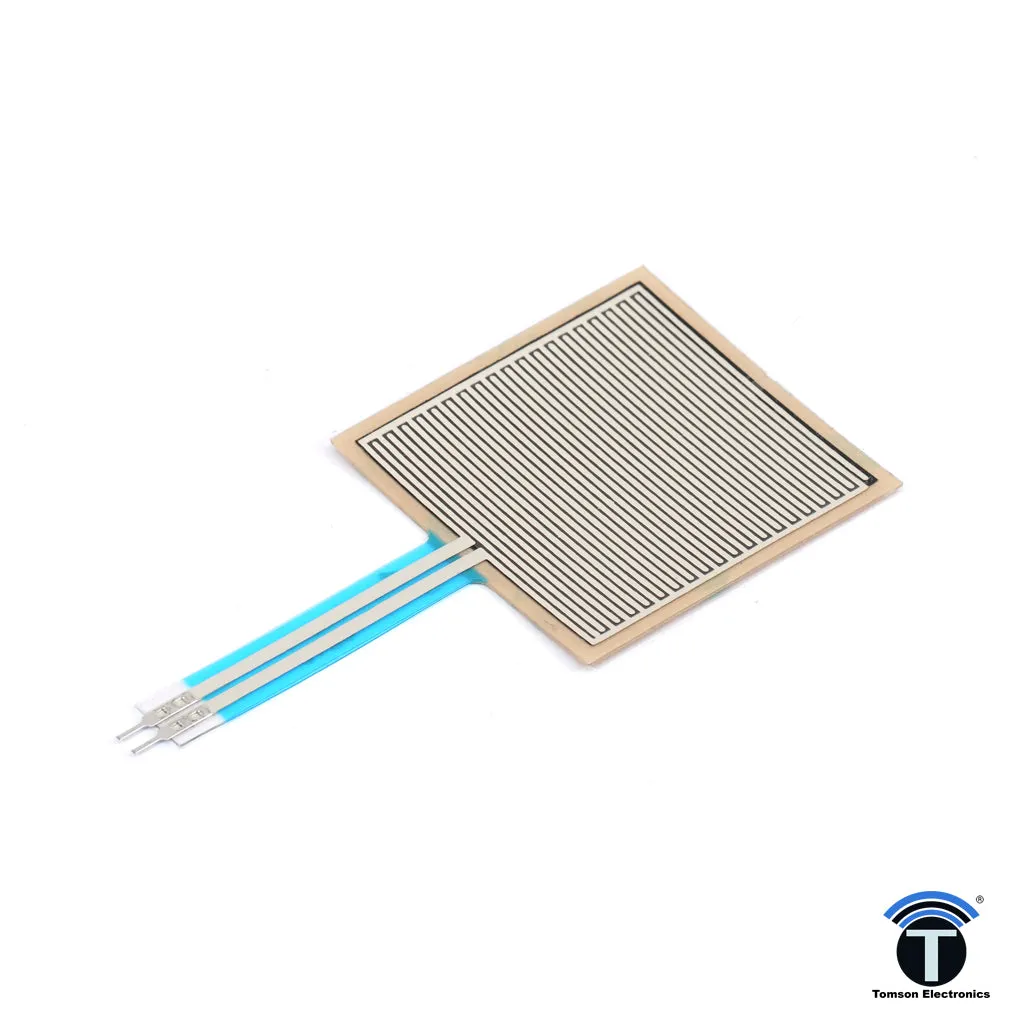

FORCE SENSOR 38.1MM SQUARE Features
- Force sensitive resistor with a square, 1.75 x 1.5″, sensing area.
- Minimum pressure : 100 gm.
- Maximum presure : 10 kg.
- Pitch : 0.1″.
- Sensing area : 1.75"×1.5″
- Resistance is directly proportional to the pressure applied.
- Pressure applied =0 ; Resistance will be larger than 1MΩ. .
- Cost-effective.
- Ultra-thin: 0.45 mm.
- Robust: up to 10 million actuations.
